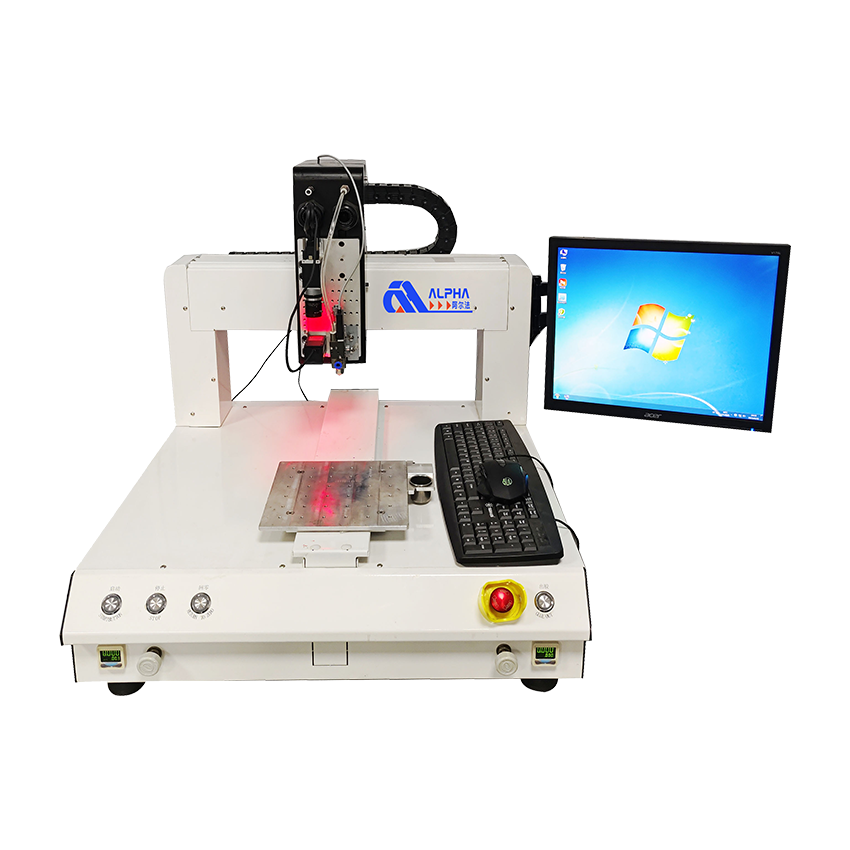

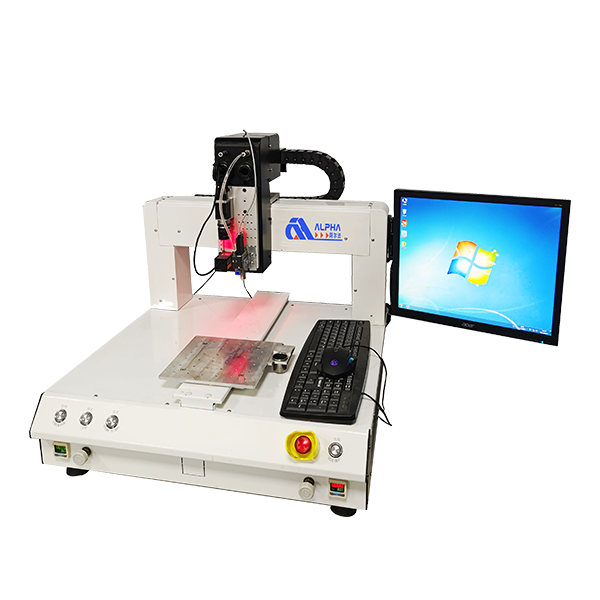

Category: Visual tracking dispensing machine
Visit:
Release time: 2025-04-26 11:48:34
Device Parameters：
| Product model | HP-D5331-YD |
| Single dispensing maximum area | L230mm*W250mm |
| Machine weight | 120KG |
| Machine size | L725*W590*H800(unit: mm)[including housing size] |
| Mode of drive | Linear motor |
| Motor system | Linear motor drive |
| Rubber valve type | Equipped with one set of hot-melt pneumatic valves |
| Volume of rubber barrel | Applicable to 30-milliliter syringes |
| Repeat positioning accuracy | ±0.02mm |
| Speed of motion | X、Y1、Y2：MAX 500mm/s,Z:300mm/s |
| Machining table top | Double Y countertop |
| Teaching mode | CCD vision + computer visual vision |
| Control system | Independently develop the motion control system |
| Input power supply | AC220V 50HZ 500W |
