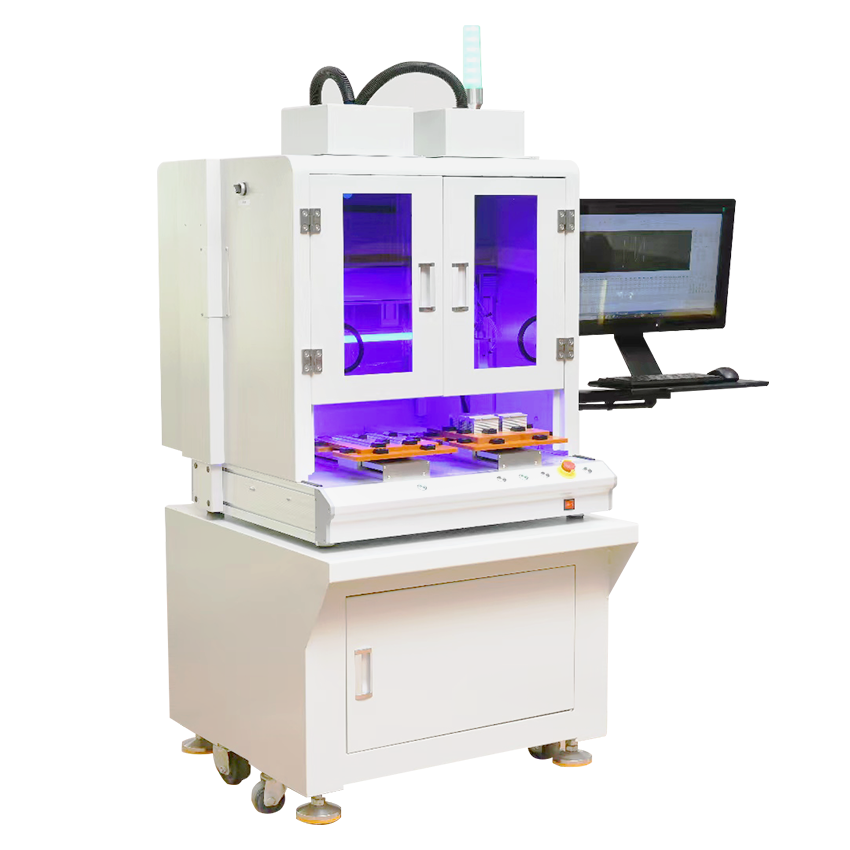

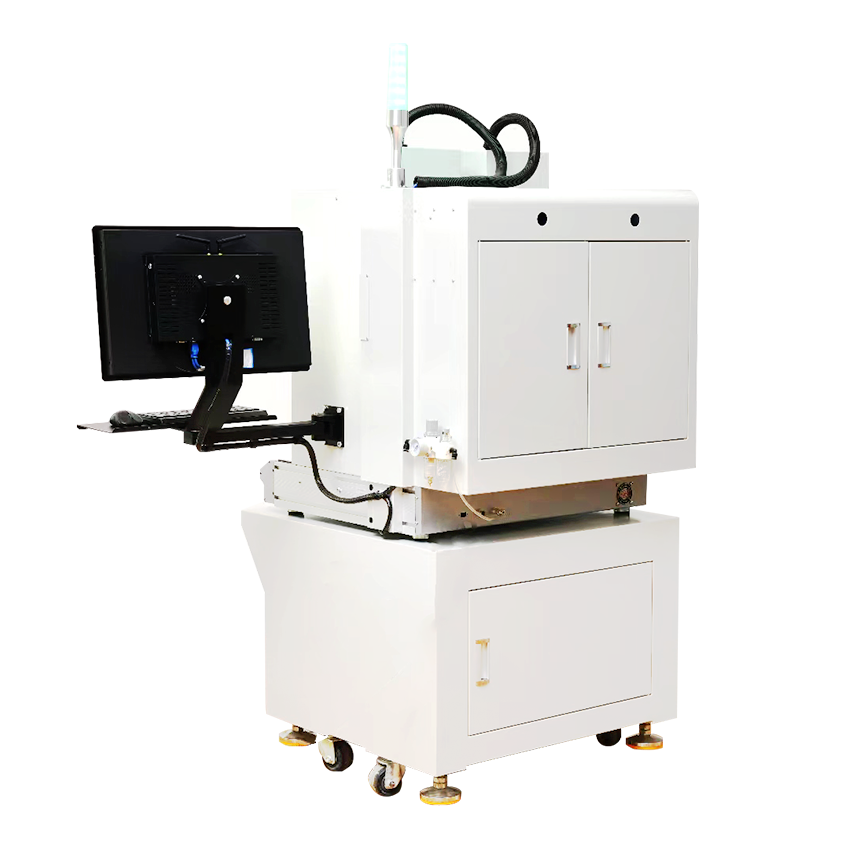

Category: Thermal paste coating machine
Visit:
Release time: 2025-04-26 14:30:40
Device Parameters：
| Suitable for liquids | All kinds of glue, heat dissipation paste, solder paste |
| Dispensing range X/Y/Z(mm) | 300/400/100mm (stroke can be customized) |
| Maximum load Y/Z | 6kg/3kg (customizable) |
| Moving speed X&Y/Z (mm/sec) | 0.1~400/200 |
| Motor system | Servo motor |
| Mode of operation | Continuous line segment |
| Mode of transmission | Screw rod module |
| Input power supply | AC220V/50HZ |
| Work environment | 5-40℃ |
| Program record mode | >1000 groups |
| Control system | Professional dispensing system |
| Electrical accessories | Ming Wei, Taiwan |
| Display mode | 21 inch monitor |
| Mode of drive | Servo drive |
| Mechanical repetition precision | ±0.02mm |
| Air pressure input | 0.1～0.7Mpa |
| Power of equipment | AC220V、50Hz，2KW |
| Dimensions (Width × length × height) | L850*W700*H1300 |
| weight | 150KG |
