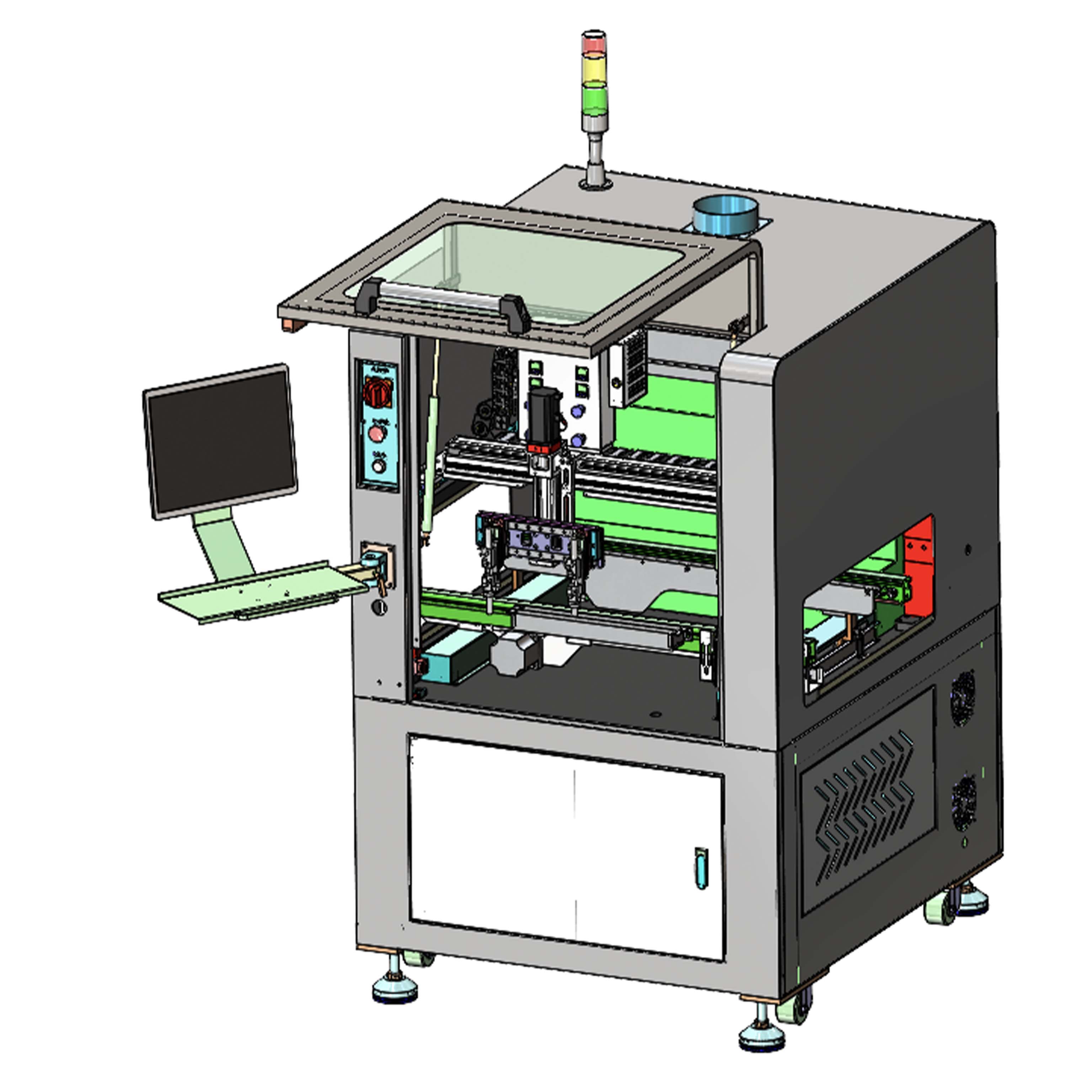

Category: Selective coating machine
Visit:
Release time: 2025-04-26 14:53:25
Device Parameters：
| Frame shape size L * W * H | L1060mm*W1200mm*H1700mm |
| Device platform | The T20 mm steel plate is ground and chrome plated |
| Mode of control | Industrial computer + motion control card |
| Mode of operation | Computerized control |
| Programming style | Manual teaching |
| Run the program store quantity | More than 1000 |
| Mode of delivery | Chain conveyor (35B5 mm stainless steel chain with extended pin) |
| PCB transmission height: | 910±20mm |
| Speed of transport | 0.5-3.5m/min adjustable |
| Transmission motor | 2 stepper motors |
| PCB width range | 50-450mm |
| Mode of adjustment | Intelligent electric regulation |
| Adjusting drive mode | Stepper motor + double precision screw drive |
| X.Y axis drive mode | Servo motor + precision screw module drive |
| X.Y axis MAX operating speed | 800mm/s |
| X. Y-axis repeat accuracy | ±0.02mm |
| MAX Z-axis running speed | 300mm/s |
| Z-axis drive mode | Servo motor + precision screw module drive |
| Repeat accuracy on the Z-axis | ±0.02mm |
| Type of rubber valve | Equipped with 4 precision atomization valve H-905, valve spacing manually adjustable |
| PCB board size | MAX：L450*W450 |
| PCB board component height | MAX：±110mm |
| Atomized spray width | 3-10mm |
| Volume of barrel | A 10L stainless steel inner bucket without stirring function + a 2L stainless steel cleaning pressure bucket |
| Cleaning function | The equipment comes with cleaning function |
| Part of lighting | Equipment comes with lighting source |
| Detection part | The equipment comes with fluorescent agent detection light source |
| Weight of equipment | Approx.650KG |
| Equipment power supply | AC220V 50HZ |
| Equipment gas source | 4-6kgf/cm2 |
| Total power of equipment | 1.8KW |
