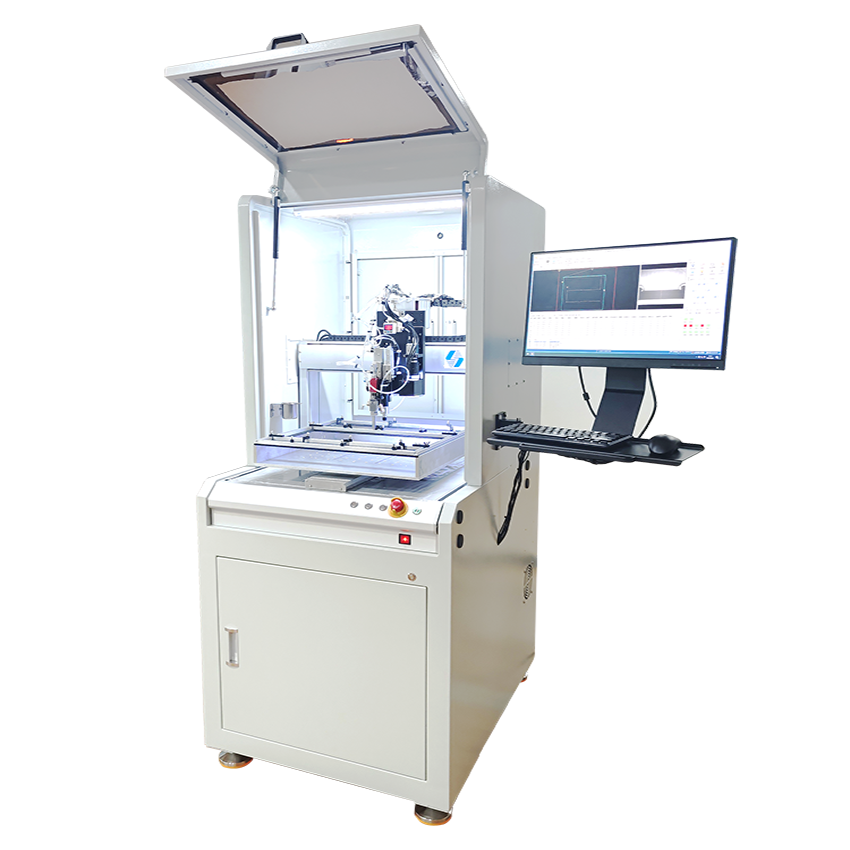

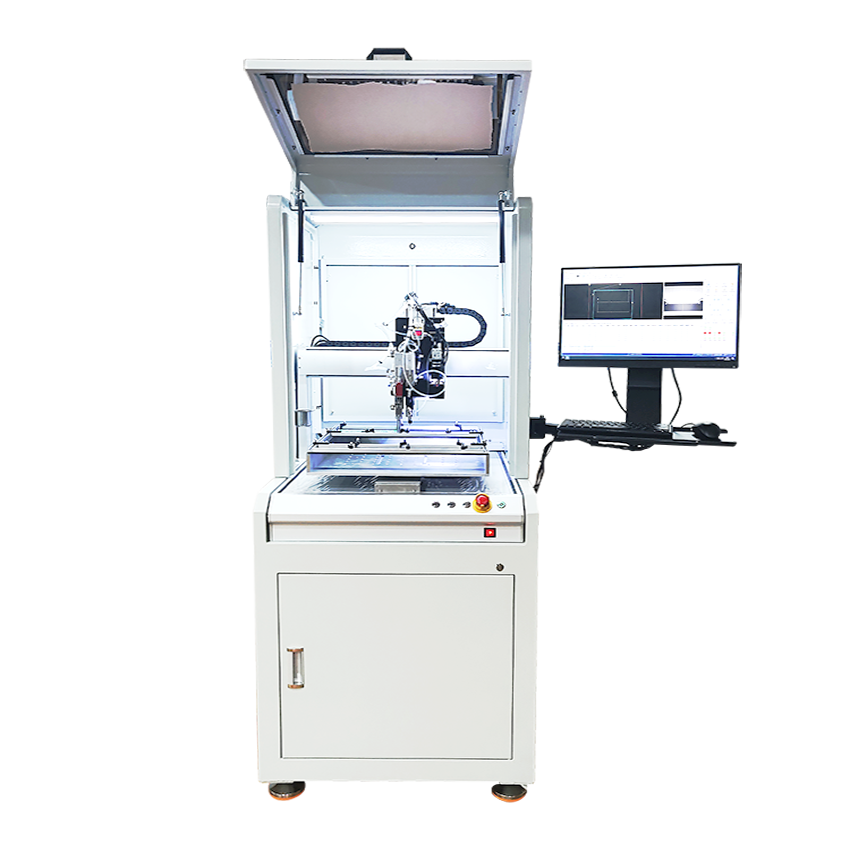

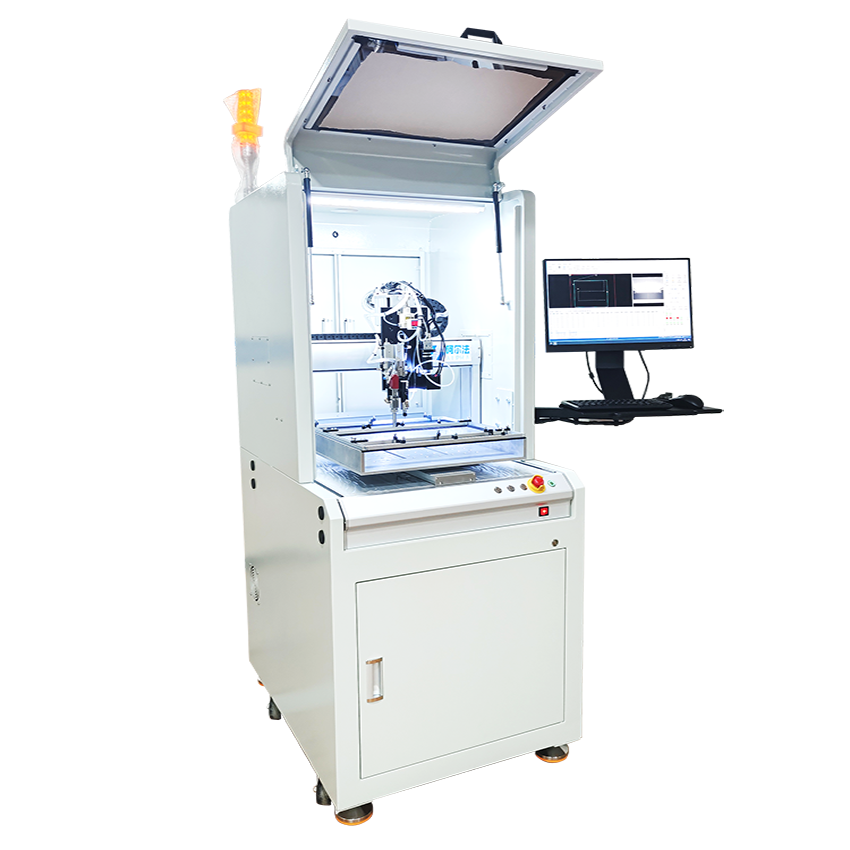

Category: Vision tracking coating machine
Visit:
Release time: 2025-04-26 14:23:09
Device Parameters：
| Frame shape size L * W * H | L850mm*W1000mm*H1700mm |
| Mode of control | Industrial computer + display screen control |
| Programming style | Manual demonstration + mouse key |
| Operating height of platform | 910±20mm |
| Stroke of coating | L500*W500mm |
| X.Y.Z drive mode | Stepper motor drive |
| X.Y Maximum Speed | 600mm/s |
| Type of rubber valve | 1 precision atomization valve MK-A50+1 fulcrum dispensing valve |
| Machining table top | Single Y countertop |
| Volume of barrel | 1 5L glue supply bucket +1 2L cleaning bucket |
| Part of lighting | Equipment comes with lighting source |
| Detection part | Equipment with UV detection light source |
| Device Power Supply | AC220V 50Hz |
| Equipment gas source | 4-6kgf/cm2 |
| Device Weight | Approx.500KG |
| Total power of equipment | 1.2KW |
