Device Parameters：
Project | Content | |

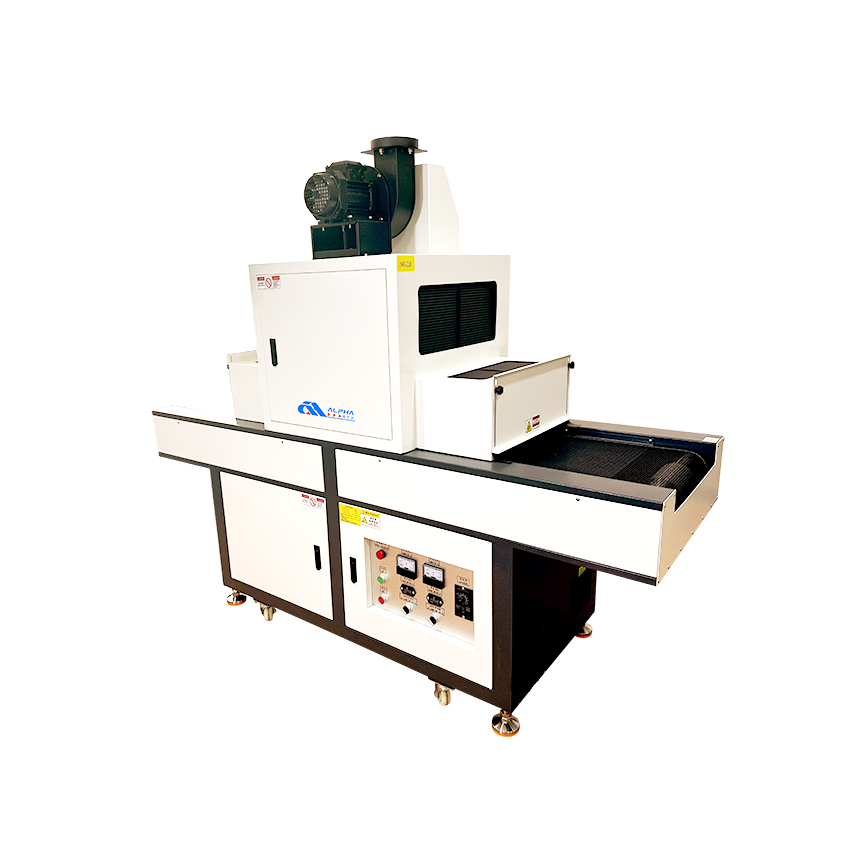

Product name | UV curing machine | |
Model | LY400-2ZL | |
Device Features | Dimensions of form | Total size: Length 2000mm × width 650mm × height 1700mm (including fan) Curing area: 600mm Length of inlet and outlet: 450mm Feed port height: 30-200mm adjustable |
| Mode of curing | Upper curing: 1. Top 2 lights, light down 2. Height adjustable (manual) 3. Material of reflector: aluminum mirror 4. Two tubes can be controlled separately | |
| Belt of net | Material: black Teflon mesh belt, UV and high temperature resistance Bearing weight: 5KG Speed: 0 ~ 8m/min | |
| Tube of light | Power: 3KW (mercury lamp) *2=6KW Brand: Primarc Model: PM3050 (Full length :500mm; Luminous length :390mm) Power density :77W/CM Quantity: 2 pieces | |
| Pump out heat | Upper suction fan: 1 set,370W | |
| Features and Configuration | 1. Power indicator: 1 2. Start button: 1 3. Stop buttons: 1 4.UV light switch (A and B) : 2 5. Ammeter (A and B) : 2 6. Timers (A and B) : 2 (display cumulative usage time) 7. Governor :1 (40:1) 8. Ballast: 2 9. Triggers: 2 | |
| Operating voltage of the whole machine | 380V 50-60Hz | |
| Total machine power | 6.5KW | |
| Net weight of the whole machine | 203.5KG | |
| Ventilation requirements | High temperature resistant aluminum foil pipe connection (this project does not include external air pipe) | |
| Overall machine color | Black grey + Computer white (reference picture) | |
| Warranty: the whole machine is guaranteed for one year, and the consumables are guaranteed for normal life. | ||
