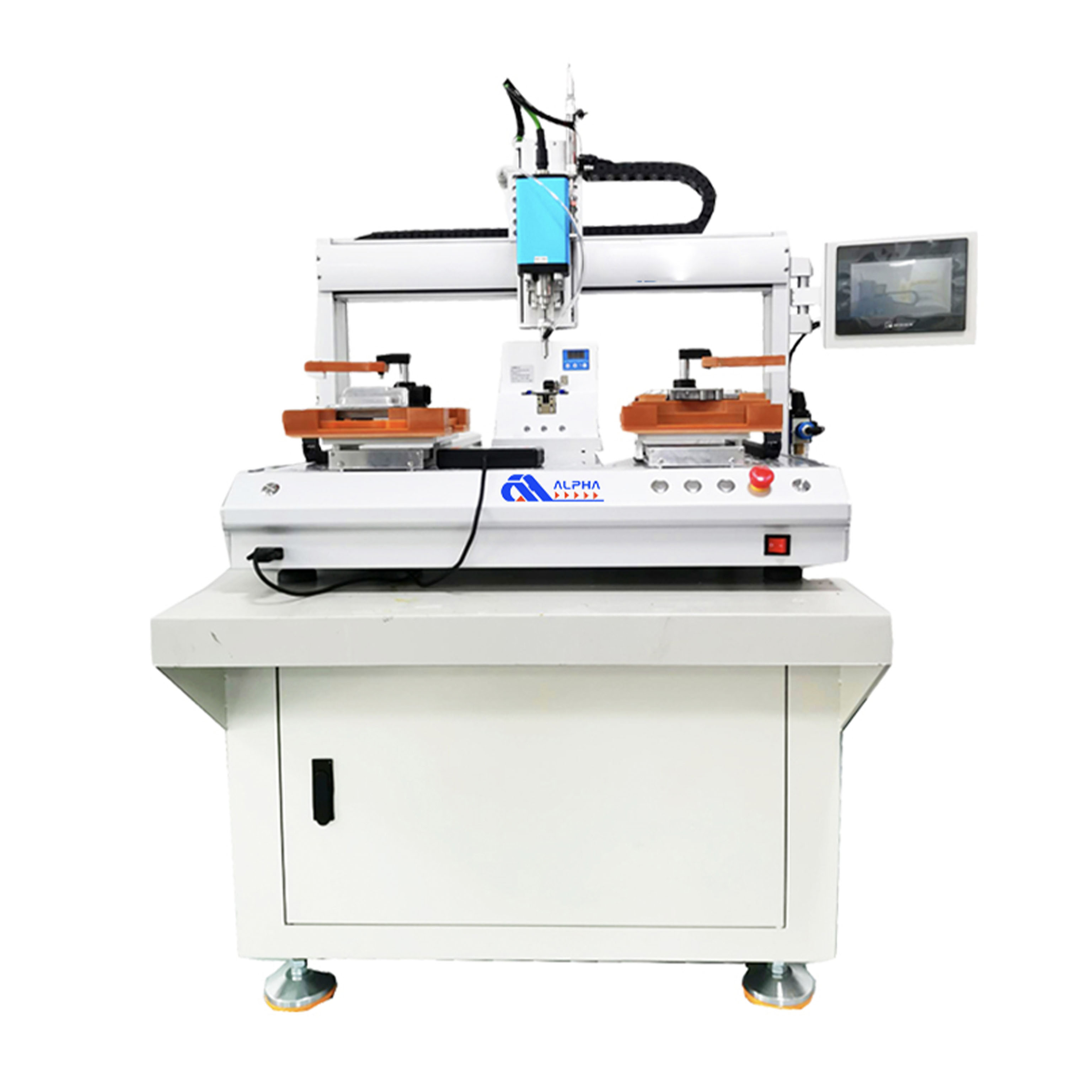

Category: Automatic screw machine
Visit:
Release time: 2025-04-26 15:12:06
Device Parameters：
| Working range X/Y/Z (mm) | 500 * 300 * 300*100mm |
| Moving speed (mm/s) | 0.1-800/400 |
| Precision of repetition | Repeat positioning accuracy ±0.02mm; Dispensing accuracy accuracy ±0.05mm |
| Program record mode | 100 groups, each group 4000 points(U disk copy can be supported) |
| Display mode | Teaching box LCD (320*243) |
| Motor system | Japan micro stepper precision motor |
| Mode of transmission | Synchronous belt + screw + precision linear guide |
| Input power supply | AC110V/220V 3O0W (internal switch conversion) |
| I/O signals | 12 lnouts/12 Outputs |
| External control interface | RS232 |
| Edit mode | Teaching box |
| Working environment temperature | 5-40℃ |
| Working environment humidity | 20-90% |
| Apply lock screw | M2--M6 |
